DSD PLAYER
DSP
P5 DSP UltraFlagship all-in-one DSD player with ES9038Pro DAC.
€ 6.999,00
In stock
Order before 16:00, same day dispatch
Delivery times per countryThe P5 DSP Ultra is the crown jewel of the Goldhorn line. It combines a high-end digital player, a professional DSP, and a master clock system into a single chassis. Designed for competition-level audiophile systems.
Key Features
- 3x ADAU1463 DSP Chips (1.2 Billion MAC operations/sec)
- 2x ES9038Pro DAC Chips
- GHA2000 Proprietary Chip
- 3x Femtosecond Clock Generators
- Support for DFF/DSF/DXD/FLAC/WAV
Technical Specifications
Product Identification
| SKU | GH-DSP-P5-DSP-ULTRA |
| EAN | 8721515310218 |
Core Processing
| DSP Processor | 3 x ADAU1463 ADI DSP Chips (192KHz Sampling) |
| DAC Chips | 2 x ES9038Pro DAC Chips (32bit/768KHz PCM) |
| ADC Chips | 2 x AK5558VN ADC Chips (32bit/768KHz PCM) |
| Processing Chip | Goldhorn Originally Designed Chip GHA2000 |
| Clock Generators | 3 x Femtosecond Clock Generators |
| Core Processors | 4 x ARM Cortex A7 cores |
| Op Amp | Hi-End Proprietary OpAmp |
| Capacitors | High Temp 105°C electrolytics and WIMA film Caps |
| Operating System | Customized Operating System |

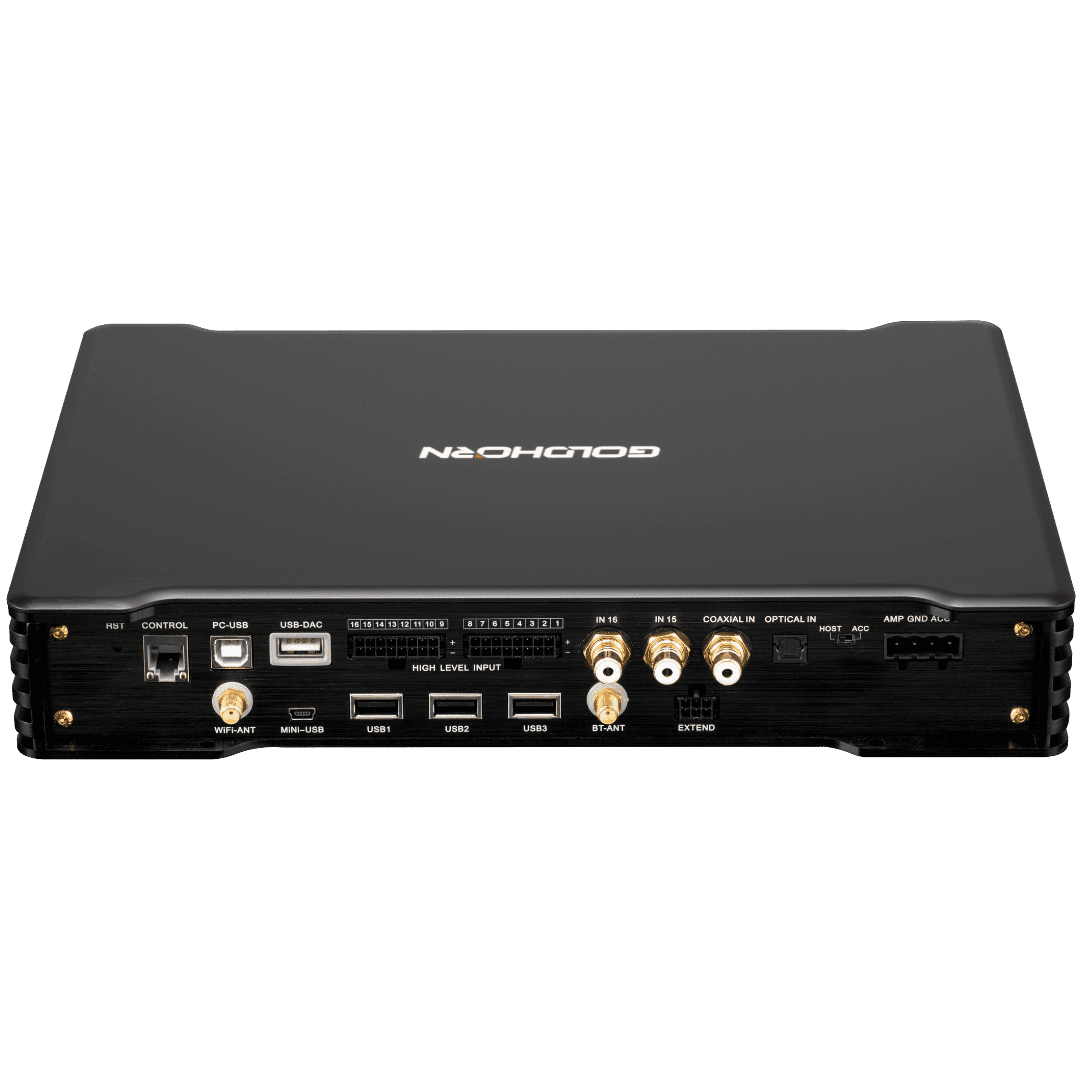

Input Stage
| High Level Inputs | 16 Channels (16Vrms Max, 6╬®) |
| RCA Inputs | 2 Channels (3Vrms Max) |
| Digital Inputs | 1x Optical, 1x Coaxial (192KHz/24bit), 1x USB-DAC (192KHz/32bit) |
| Bluetooth | 5.0 (A2DP/AVRCP, aptX HD, aptX, AAC, SBC) |
| Wi-Fi | 802.11b/g/n |

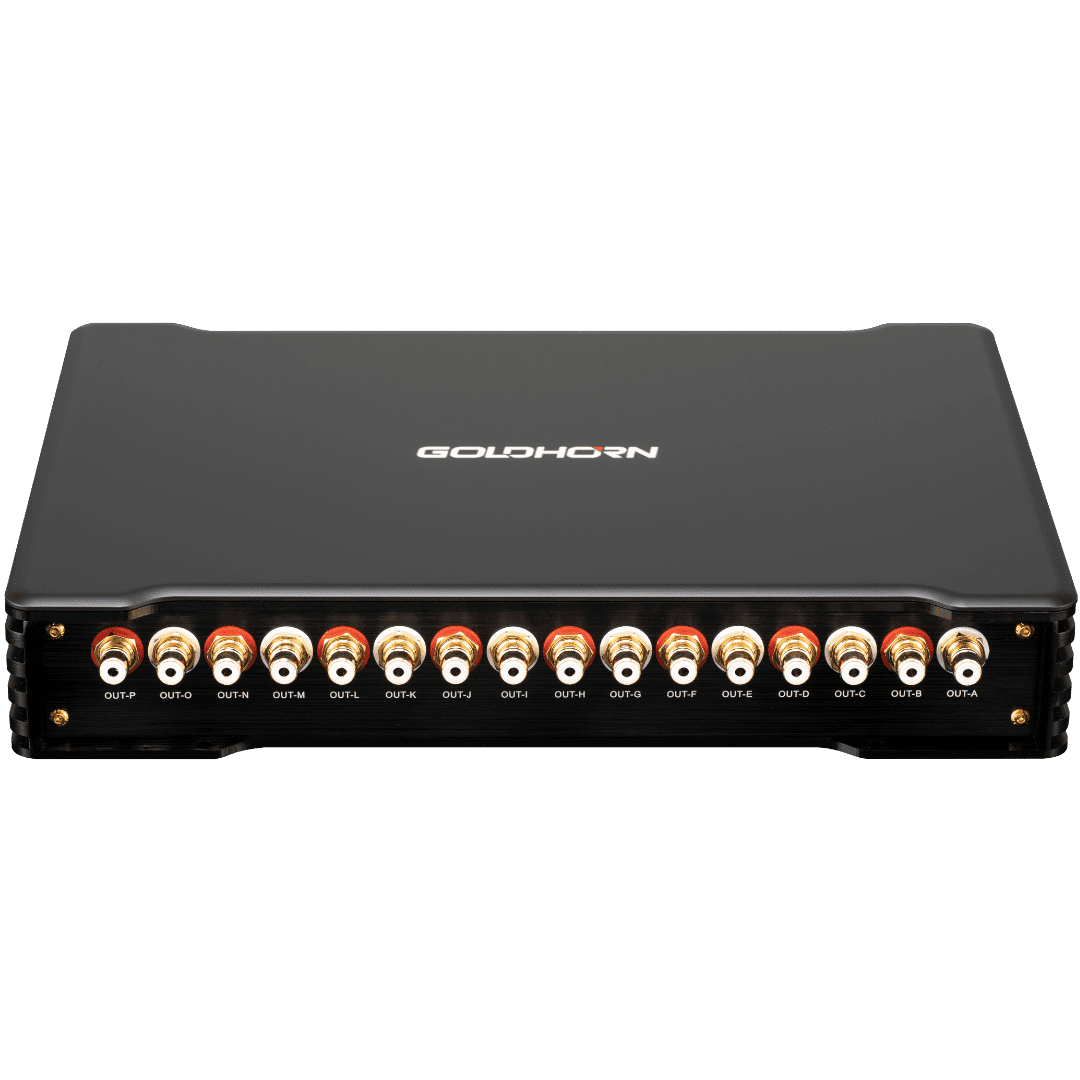

Output Stage
| RCA Outputs | 16 Channels (11.2Vp-p / 4Vrms) |
| Output Impedance | 47k╬® |
| Video Output | 1 x CVBS video output (NTSC) |
File Support & Decoding
| Hi-Res Formats | DFF, DSF |
| Uncompressed Formats | WAV, FLAC, APE, AIFF |
| Compressed Formats | MP3, AAC, OGG, WMA, MV |
DSP Capabilities
| Frequency Response | 10Hz - 80KHz (±1dB) |
| Output Crossover | 20Hz-20KHz, -6 to -48dB/Oct (Butterworth/Linkwitz/Bessel) |
| Output EQ | 30-Band Parametric (PE, LS, HS, Slope 1&2 AP), Gain ±15dB |
| Input EQ | 5-Band Parametric, Gain ±15dB |
| Output Time Delay | 0-20ms / 0-680cm (Step 0.005ms) |
| Input Time Delay | 0-10ms / 0-340cm (Step 0.005ms) |
| Phase Control | 0° to 360° (step 1°) |
| Output Polarity | Positive phase / Inverted phase |
| Dynamic Loudness | Separate parameters for Analog/Digital/Bluetooth |
| SKYATOM Surround | 6-ch input, 3D/Bass/Treble Enhancement |
| Volume Control | Master: -100dB to 0dB (60 levels), Channel: -20dB to +5dB |
System & General
| USB Terminals | 3x USB 2.0 HOST, 1x Type-B, 1x USB-DAC (OTG) |
| Control Methods | Panel (IPS), Wireless Remote, Steering Wheel |
| PC Tuning Software | Microsoft Windows 7 or higher |
| Dimensions | 303mm x 231mm x 50mm |
| Weight | 7.32kg |
Electrical Specifications
| Voltage | 11V - 16V |
| Turn On Mode | ACC / High level inputs |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -30°C ~ 85°C |
| Maximum Humidity | <90% RH |
Manufacturer & Importer Information
Manufacturer:Goldhorn Electronics Co., Ltd (Fujian)
Building 13, Haixi Hi-Tech Park,
Fuzhou, Fujian, China
www.goldhornaudio.com
Building 13, Haixi Hi-Tech Park,
Fuzhou, Fujian, China
www.goldhornaudio.com
