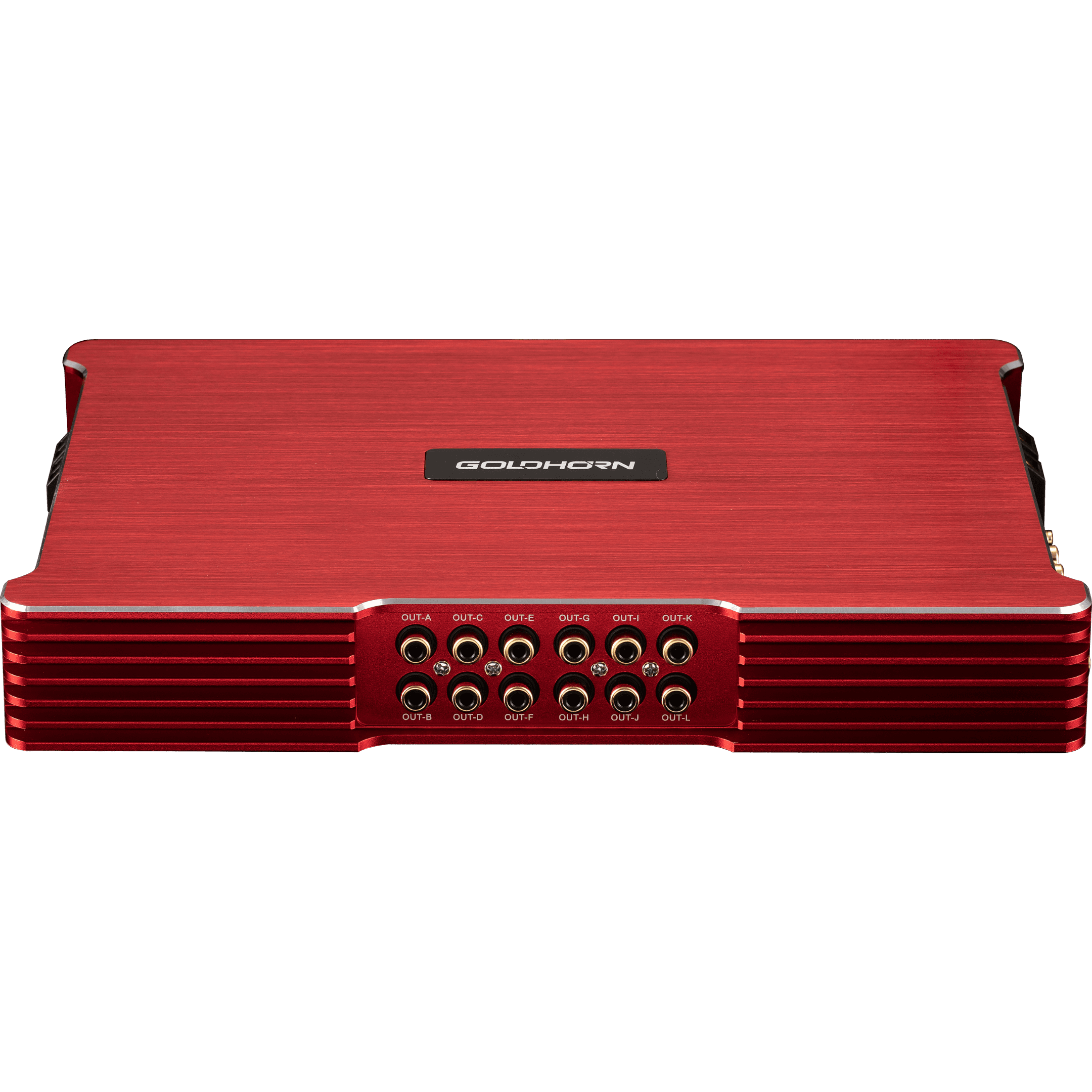

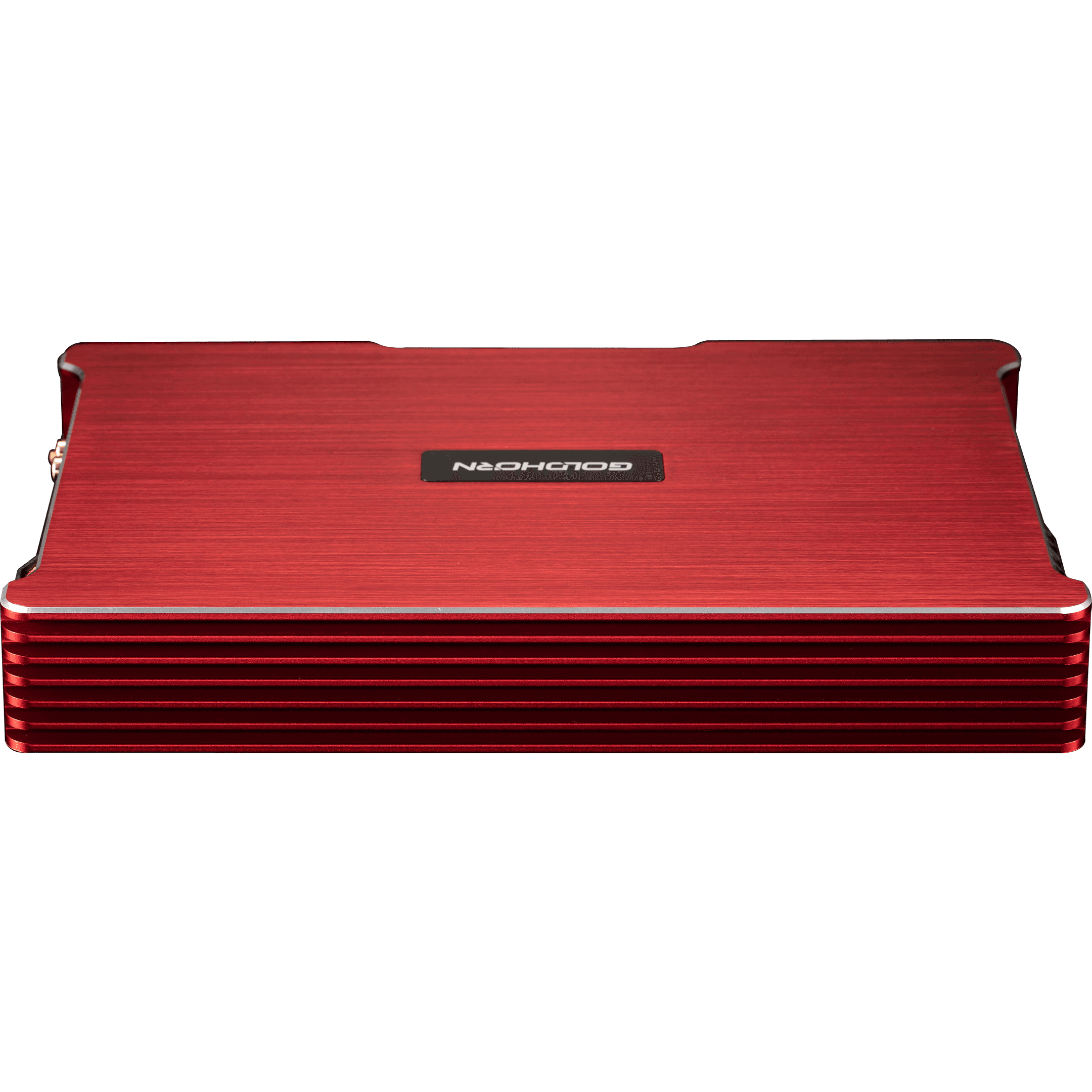

P3 DSPA Plus
Integrated system combining DSP, professional amplifier, and DSD player.
The P3 DSPA Plus is an all-in-one system combining a hi-res DSD player, DSP and a 10-channel hybrid amplifier: 8 Class AB channels (8x 50W) for speakers plus 2 Class D channels (2x 100W) for subwoofers. With 10 high-level inputs, 12 DSP-processed RCA outputs, optical, coaxial and USB digital inputs, Bluetooth 5.0 aptX HD and SKYATOM surround compatibility, it replaces a complete rack of separate components.
Key Features
- ADAU1452 ADI DSP Chip
- AK5704 ADC Chip
- 10x High Level Outputs
- SKYATOM Surround Compatible
Technical Specifications
Product Identification
| SKU | GH-DSPAMP-P3-DSPA-PLUS |
| EAN | 8721515310171 |
Core Processing
| DSP Processor | 1x Analog Devices ADAU1452 |
Input Stage
| High Level Inputs | 10 Channels |
| RCA Inputs | 2 Channels |
| Digital Inputs | Optical, Coaxial, USB |
Output Stage
| RCA Outputs | 12 Channels (DSP Processed) |
Amplification
| Amplifier Class | Class AB (8ch) + Class D (2ch) |
| Power Output (4Ω) | 8x 50W + 2x 100W |
| Power Output (2Ω) | 8x 80W + 2x 180W |
Audio Performance
| THD+N | ≤0.005% |
| S/N Ratio | ≥100dB |
Connectivity
| Bluetooth | 5.0 aptX HD |
System & General
| Dimensions | 255mm x 185mm x 50mm |
Manufacturer & Importer Information
Manufacturer:Goldhorn Electronics Co., Ltd (Fujian)
Building 13, Haixi Hi-Tech Park,
Fuzhou, Fujian, China
www.goldhornaudio.com
Building 13, Haixi Hi-Tech Park,
Fuzhou, Fujian, China
www.goldhornaudio.com
