DSD PLAYER
P2 ProMid-range Pure DSD Player.
€ 1.149,00
In stock
Order before 16:00, same day dispatch
Delivery times per countryDelivering the signature Goldhorn sound in a pure source format. The P2 Pro uses advanced ESS Sabre DACs to provide a crystal clear analog signal.
Key Features
- Pure Source
- ESS Sabre DAC
- External Remote Support
Technical Specifications
Product Identification
| SKU | GH-PLAYER-P2-PRO |
| EAN | 8721515310232 |
Core Processing
| Hi-End Components | Goldhorn originally designed chip GHA1000 2 x AK4493 DAC Chips (32bit/768KHz PCM) 2 x femtosecond clock generators Customized operating system Texas Instruments OPA2604 Operation Amp High Temperature for High Reliability to 105°C electrolytics and WIMA film Caps 4 x ARM Cortex A7 cores |
Input Stage

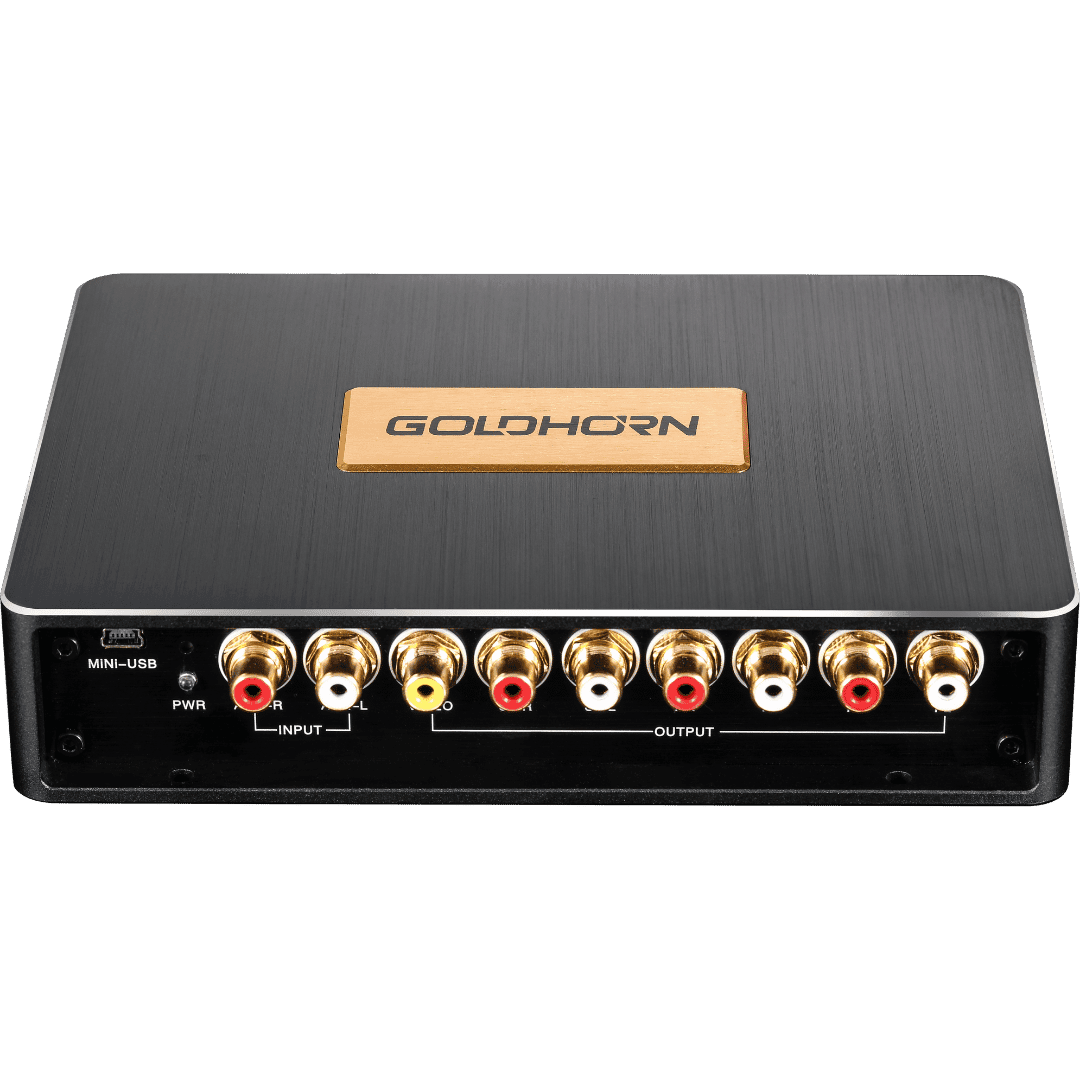

| Inputs | 4 x High Level Inputs 10Vrms Max. 2 x RCA Inputs 1.2Vrms Max. Input Impedance: 6╬® |
Output Stage

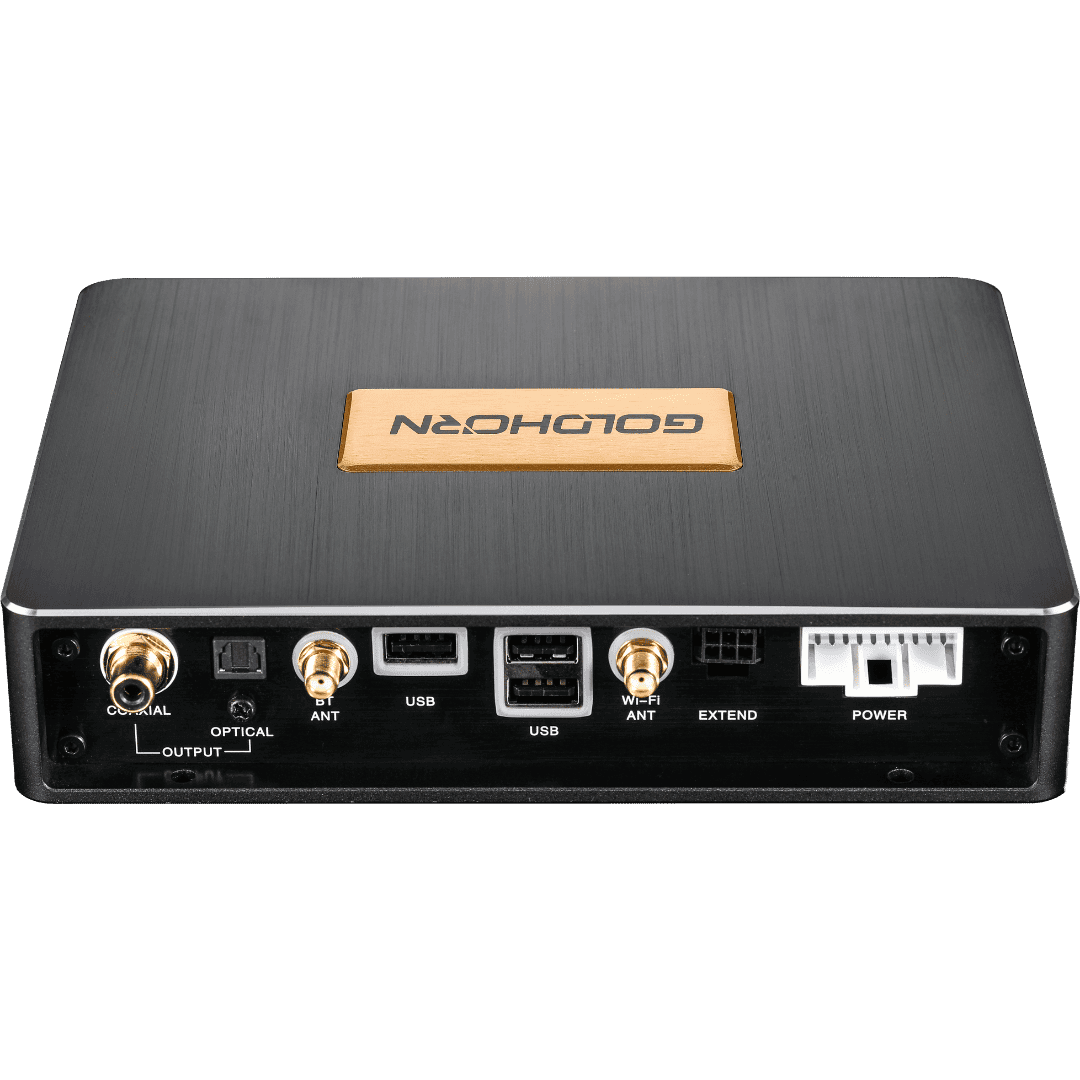

| Outputs | 6x RCA Outputs 11.2Vp-p(4Vrms)/47K╬® 1 x Optical Output / 1 x Coaxial Output (up to 192KHz/24bit) 1 x CVBS video output (NTSC) |
File Support & Decoding
| Music Formats | Hi-res: DFF/DSF uncompressed: WAV/FLAC/APE/AIFF compressed: MP3/AAC/OGG/WMA/MV |
| Sampling Rate | PCM: 44.1KHz~768KHz/16~32bit DSD: DSD64/DSD128/DSD256 |
System & General
| Source Selection | Factory unit/AUX/player/Auto/Bluetooth® 5.0 |
| Intelligent Control | Panel control with IPS display; 2.4GHz wireless digital remote control; Mobile App Control; Steering wheel control (for limited car make only) |
| Wi-Fi Standard | 802.11b/g/n |
| Bluetooth® Receiver | Bluetooth® 5.0 Profile: A2DP/AVRCP Audio Codec: aptX/aptX HD/AAC/SBC |
| USB Terminals | USB2.0 HOST x 3 |
| Extend Terminal | Steering wheel controller terminal x 1 |
| Dimensions | 194mm x 145.6mm x 40.5mm |
| Weight | 2.20kg |
Electrical Specifications
| Voltage | 11V-16V |
| Turn-On Mode | ACC |
| Operating Temperature | -20°C~70°C |
| Storage Temperature | -30°C~85°C |
| Maximum Humidity | <90%RH |
Manufacturer & Importer Information
Manufacturer:Goldhorn Electronics Co., Ltd (Fujian)
Building 13, Haixi Hi-Tech Park,
Fuzhou, Fujian, China
www.goldhornaudio.com
Building 13, Haixi Hi-Tech Park,
Fuzhou, Fujian, China
www.goldhornaudio.com
