P2 DSP Pro V2.0
Integrated source and decoding design derived from the P5.
The P2 DSP Pro V2.0 adopts the same integrated source and decoding design as the flagship P5 DSP Ultra, eliminating the signal loss of separated designs. Built around an ADAU1463 DSP chip, six ES9038Q2M DAC chips, Goldhorn’s proprietary GHA1000 chip and three femtosecond clock generators, it offers native DSD support and 12 RCA outputs for pairing with pure power amplifiers.
Key Features
- ADAU1463 ADI DSP Chip
- 6x ES9038Q2M DAC Chips
- GHA1000 Proprietary Chip
- 3x Femtosecond Clock Generators
- Native DSD Support
- 12 RCA Outputs
Technical Specifications
Product Identification
| SKU | GH-DSP-P2-DSP-PRO-V2-0 |
| EAN | 8721515310201 |
Core Processing
| DSP Chip | ADAU1463 ADI DSP Chip |
| DAC Chips | 6 x ES9038Q2M DAC Chips |
| ADC Chips | 2 x ES9840Q ADC Chips |
| Processing Chip | Goldhorn Originally Designed Chip GHA1000 |
| Clock Generators | 3 x Femtosecond Clock Generators |
| Op Amp | Texas Instruments OPA1612 Operation Amp |
| Capacitors | High Temp 105°C electrolytics and WIMA film Caps |
| Operating System | Customized Operating System |
Input Stage
| High Level Inputs | 8 Channels (16Vrms Max, 6Ω) |
| RCA Inputs | 2 Channels (3Vrms Max) |
| Digital Inputs | 1x Optical (192KHz/24bit), 1x Coaxial, 1x USB-DAC (192KHz/32bit) |
| Bluetooth | 5.0 (A2DP/AVRCP, aptX HD, aptX, AAC, SBC) |
| Wi-Fi | 802.11b/g/n |
Output Stage

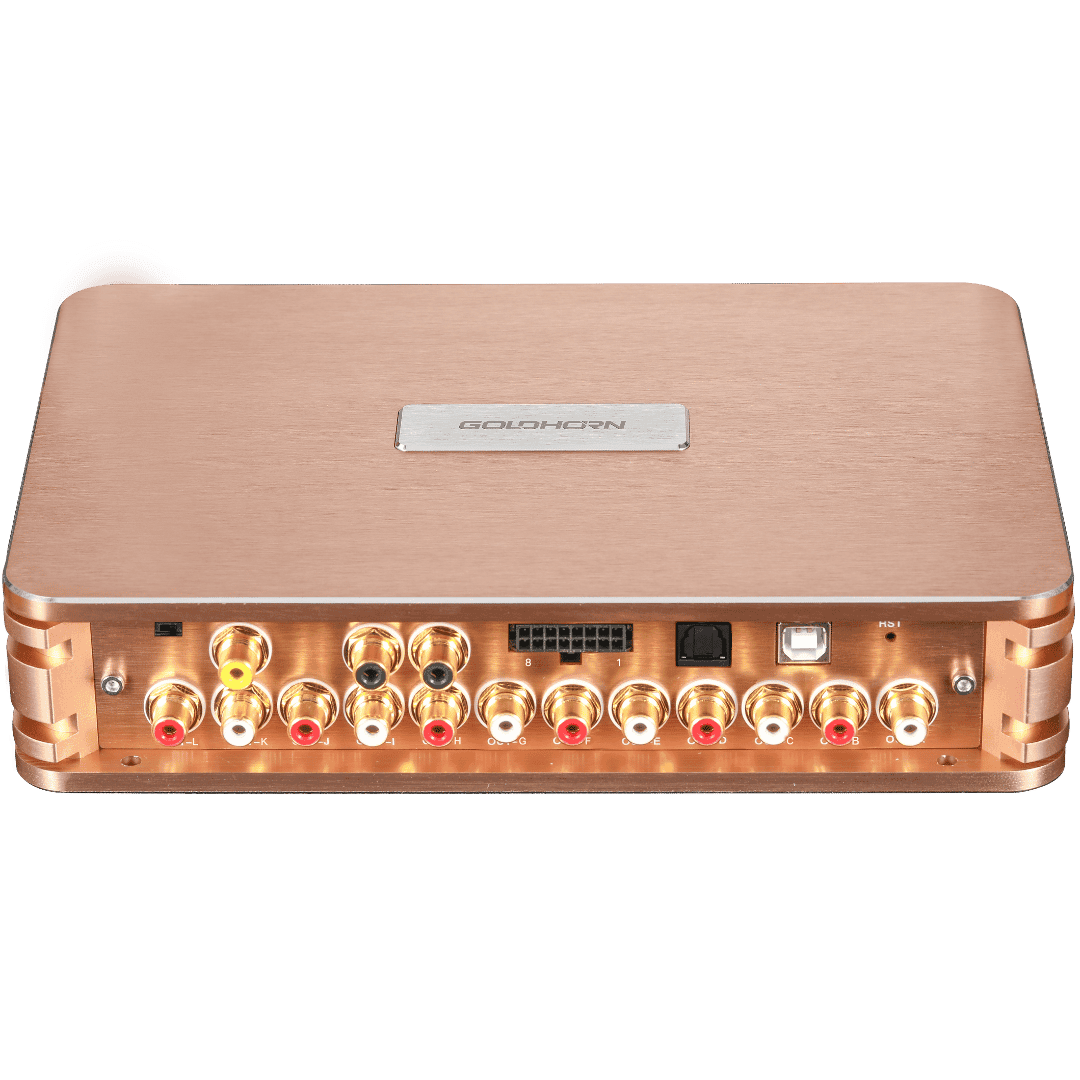

| RCA Outputs | 12 Channels (11.2Vp-p / 4Vrms) |
| Output Impedance | 47kΩ |
| Video Output | 1 x CVBS video output (NTSC) |
Audio Performance
| Frequency Response | 20Hz - 40KHz |
| THD+N | <0.0003% |
| S/N Ratio | >121dB |
File Support & Decoding
| Hi-Res Formats | DFF, DSF |
| Uncompressed Formats | WAV, FLAC, APE, AIFF |
| Compressed Formats | MP3, AAC, OGG, WMA, MV |
| PCM Sampling | 44.1KHz-768KHz / 16-32bit |
| DSD Sampling | DSD64 / DSD128 / DSD256 |
DSP Capabilities
| Output Crossover | 20Hz-20KHz, -6 to -48dB/Oct (Butterworth/Linkwitz/Bessel) |
| Output EQ | 31-Band Parametric (PE, LS, HS, Slope 1&2 AP), Gain ±15dB |
| Input EQ | 5-Band Parametric, Gain ±15dB |
| Output Time Delay | 0-20ms / 0-680cm (Step 0.01ms) |
| Input Time Delay | 0-10ms / 0-340cm (Step 0.01ms) |
| Phase Control | 0° to 360° (step 1°) |
| Output Polarity | Positive phase / Inverted phase |
| Dynamic Loudness | Separate parameters for Analog/Digital/Bluetooth |
| SKYATOM Surround | 6-ch input, 3D/Bass/Treble Enhancement |
| Volume Control | Master: -100dB to 0dB (60 levels), Channel: -20dB to +5dB |
| Source Selection | Mix-mode |
System & General

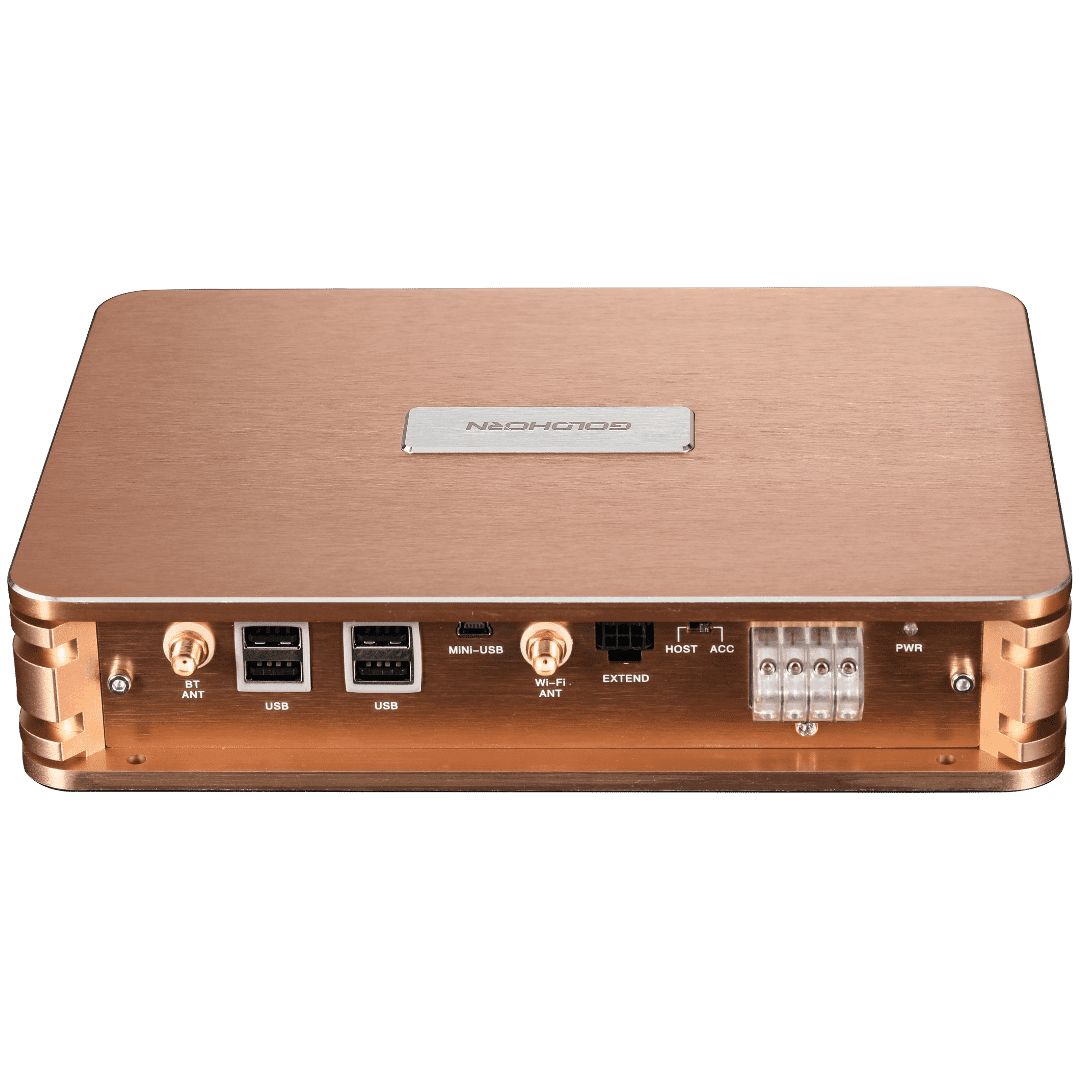

| USB Terminals | 4x USB2.0 HOST, 1x USB type B for PC software |
| Extension Port | Steering wheel controller terminal x 1 |
| Control Methods | Panel (IPS), Wireless Remote, Steering Wheel |
| PC Tuning Software | Microsoft Windows 7 or higher |
| Dimensions | 241mm x 180mm x 50mm |
| Weight | 3.56kg |
Electrical Specifications
| Voltage | 11V - 16V |
| Turn On Mode | ACC / High level inputs |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -30°C ~ 85°C |
| Maximum Humidity | <90% RH |
