DSP
AMPLIFIER

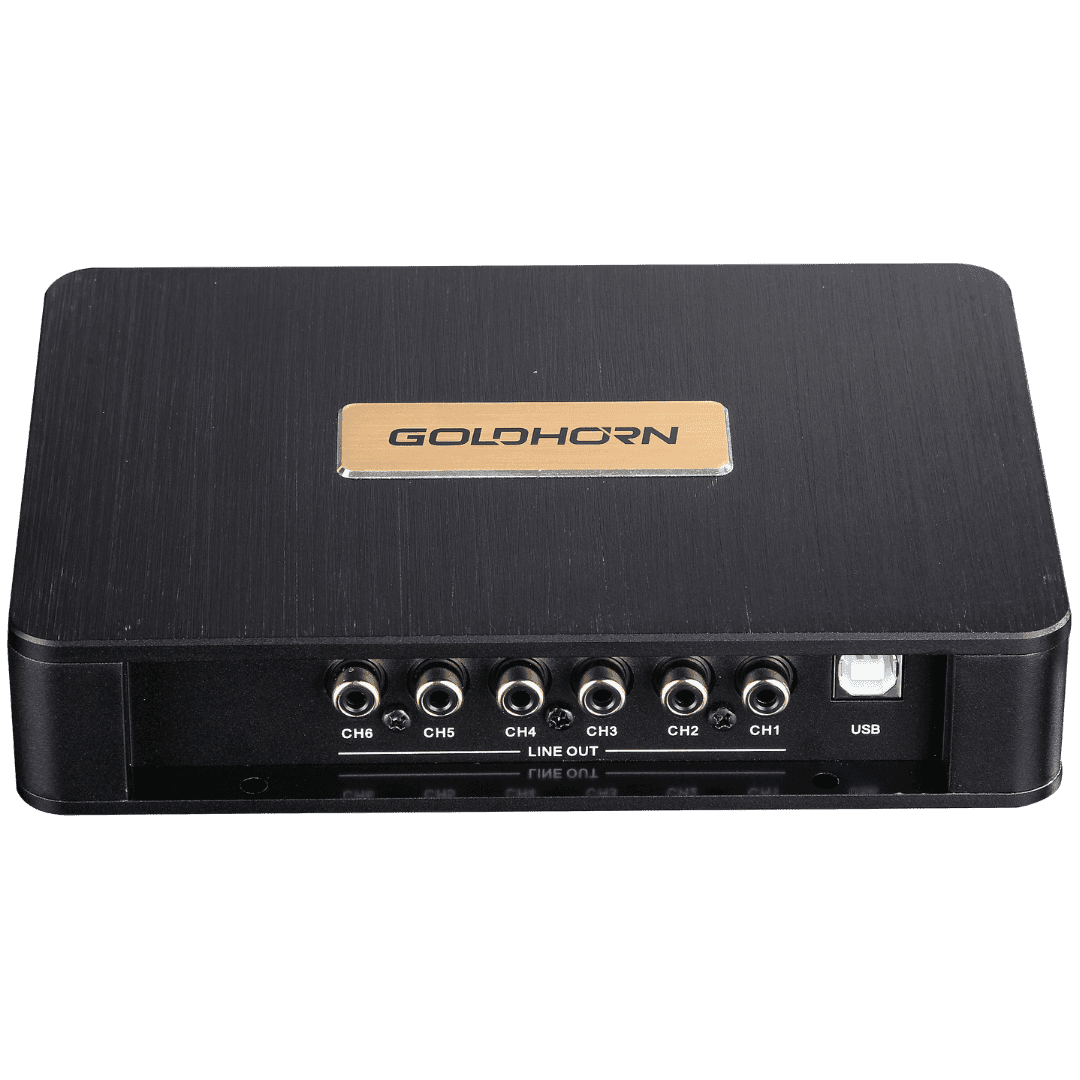

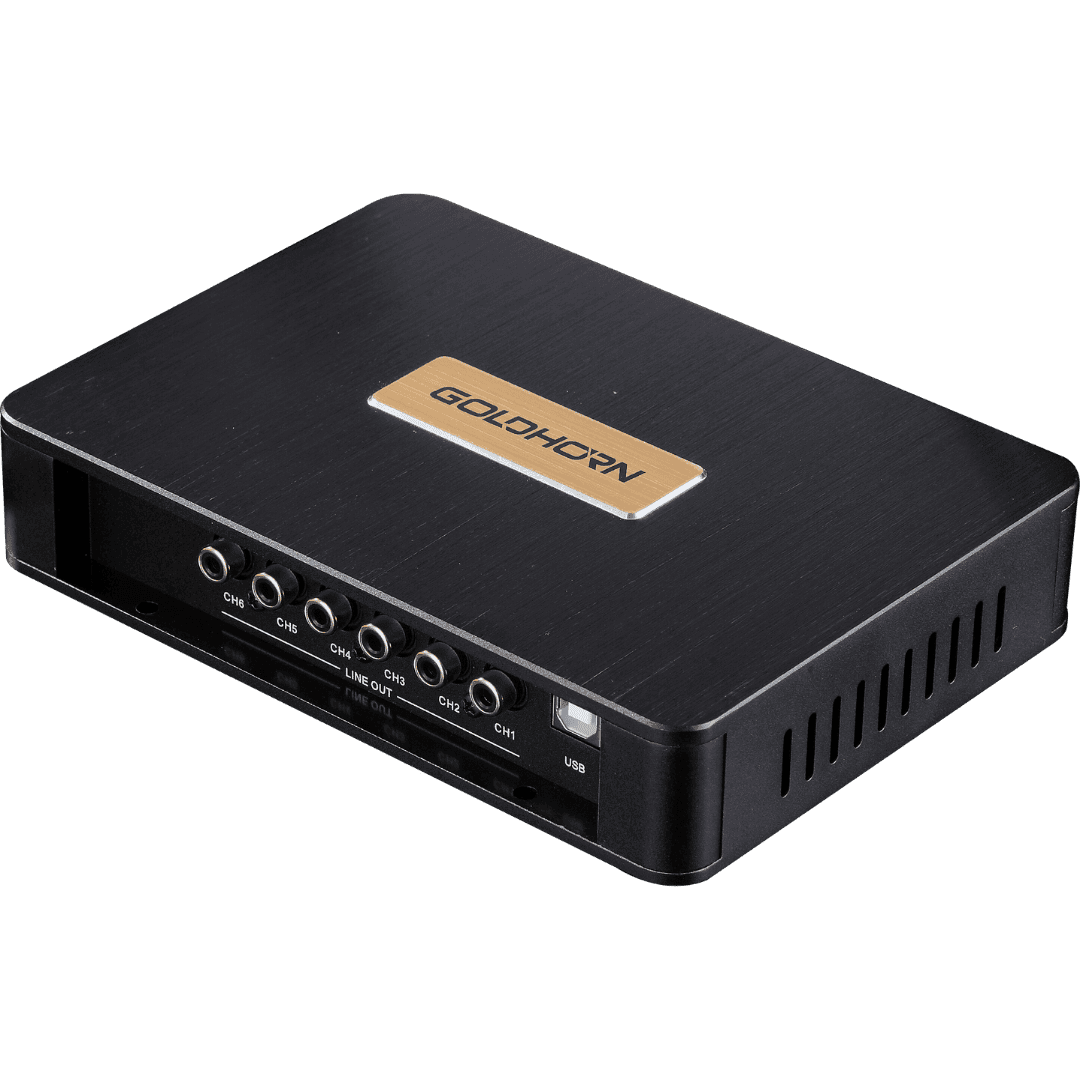

DSPA 406 V2.04-Channel AB-class Amp with 6-Channel DSP.
€ 349,00
In stock
Order before 16:00, same day dispatch
Delivery times per countryPositioned as an entry-level simple upgrade solution, it features 31-band EQ adjustment, 4 x 30W AB-class rated power output, standard Bluetooth 5.0, and mobile phone OTG functionality. It delivers powerful sound performance, making it ideal for car owners seeking entry-level audio upgrades.
Key Features
- Compact Size
- Plug & Play Ready
- Mobile Phone OTG
Technical Specifications
Product Identification
| SKU | GH-DSPAMP-DSPA-406 |
| EAN | 8721515310133 |
Core Processing
| Frequency Response | 20Hz ~ 40KHz |
| DSP Chip | AK7735 |
| DAC Chip | AK7735 + PCM1754 |
Input Stage
| High Level Inputs | 4 Channels (10Vrms Max.) |
| RCA Inputs | 2 Channels (3Vrms Max.) |
| USB Audio | 1x USB-DAC (USB-OTG, up to 192KHz/32bit) |
| Input Impedance | 6╬® |
| Input Equalizer | 5-Band Parametric EQ (20Hz~20KHz) |
| Input Delay | 0-10ms / 0-340cm |
| Dynamic Loudness | Separate DLC for Analog/Bluetooth |
Output Stage
| High Level Outputs | 4 Channels (30W/4╬® RMS, 65W/4╬® Max.) |
| RCA Outputs | 6 Channels (4Vrms) |
| SQ (High Level) | THD+N: <0.03%, S/N: >100 dB |
| SQ (RCA) | THD+N: <0.0017%, S/N: >105 dB |
| Output Equalizer | 31-Band Parametric EQ (20Hz~20KHz) |
| Output Crossover | 20Hz ~ 20KHz (-6dB~-48dB/Oct) |
| Output Phase | Variable 0° to 360° |
| Output Delay | 0~20ms / 0~680cm |
System & General
| Voltage | 11V-16V |
| Turn-On Mode | ACC / High Level Inputs |
| Dimensions | 180mm x 129mm x 36mm |
| Weight | 1.08kg |
| Operating Temp. | -20°C ~ 70°C |
| Storage Temp. | -30°C ~ 85°C |
Network & Media
| Bluetooth Receiver | 5.0 (aptX HD/aptX/AAC/SBC) |
Tuning Features
| PC Tuning | Windows 7 or higher |
| Control Modes | Mode Selection / Volume / Bass |
Manufacturer & Importer Information
Manufacturer:Goldhorn Electronics Co., Ltd (Fujian)
Building 13, Haixi Hi-Tech Park,
Fuzhou, Fujian, China
www.goldhornaudio.com
Building 13, Haixi Hi-Tech Park,
Fuzhou, Fujian, China
www.goldhornaudio.com
Technical Specifications
Product Identification
| SKU | GH-DSPAMP-DSPA-406 |
| EAN | 8721515310133 |
Core Processing
| Frequency Response | 20Hz ~ 40KHz |
| DSP Chip | AK7735 |
| DAC Chip | AK7735 + PCM1754 |
Input Stage
| High Level Inputs | 4 Channels (10Vrms Max.) |
| RCA Inputs | 2 Channels (3Vrms Max.) |
| USB Audio | 1x USB-DAC (USB-OTG, up to 192KHz/32bit) |
| Input Impedance | 6╬® |
| Input Equalizer | 5-Band Parametric EQ (20Hz~20KHz) |
| Input Delay | 0-10ms / 0-340cm |
| Dynamic Loudness | Separate DLC for Analog/Bluetooth |
Output Stage
| High Level Outputs | 4 Channels (30W/4╬® RMS, 65W/4╬® Max.) |
| RCA Outputs | 6 Channels (4Vrms) |
| SQ (High Level) | THD+N: <0.03%, S/N: >100 dB |
| SQ (RCA) | THD+N: <0.0017%, S/N: >105 dB |
| Output Equalizer | 31-Band Parametric EQ (20Hz~20KHz) |
| Output Crossover | 20Hz ~ 20KHz (-6dB~-48dB/Oct) |
| Output Phase | Variable 0° to 360° |
| Output Delay | 0~20ms / 0~680cm |
System & General
| Voltage | 11V-16V |
| Turn-On Mode | ACC / High Level Inputs |
| Dimensions | 180mm x 129mm x 36mm |
| Weight | 1.08kg |
| Operating Temp. | -20°C ~ 70°C |
| Storage Temp. | -30°C ~ 85°C |
Network & Media
| Bluetooth Receiver | 5.0 (aptX HD/aptX/AAC/SBC) |
Tuning Features
| PC Tuning | Windows 7 or higher |
| Control Modes | Mode Selection / Volume / Bass |
