DSP
AMPLIFIER
DSPA 1216 Plus12-Channel DSP Amplifier for complex system integration.
€ 1.399,00
In stock
Order before 16:00, same day dispatch

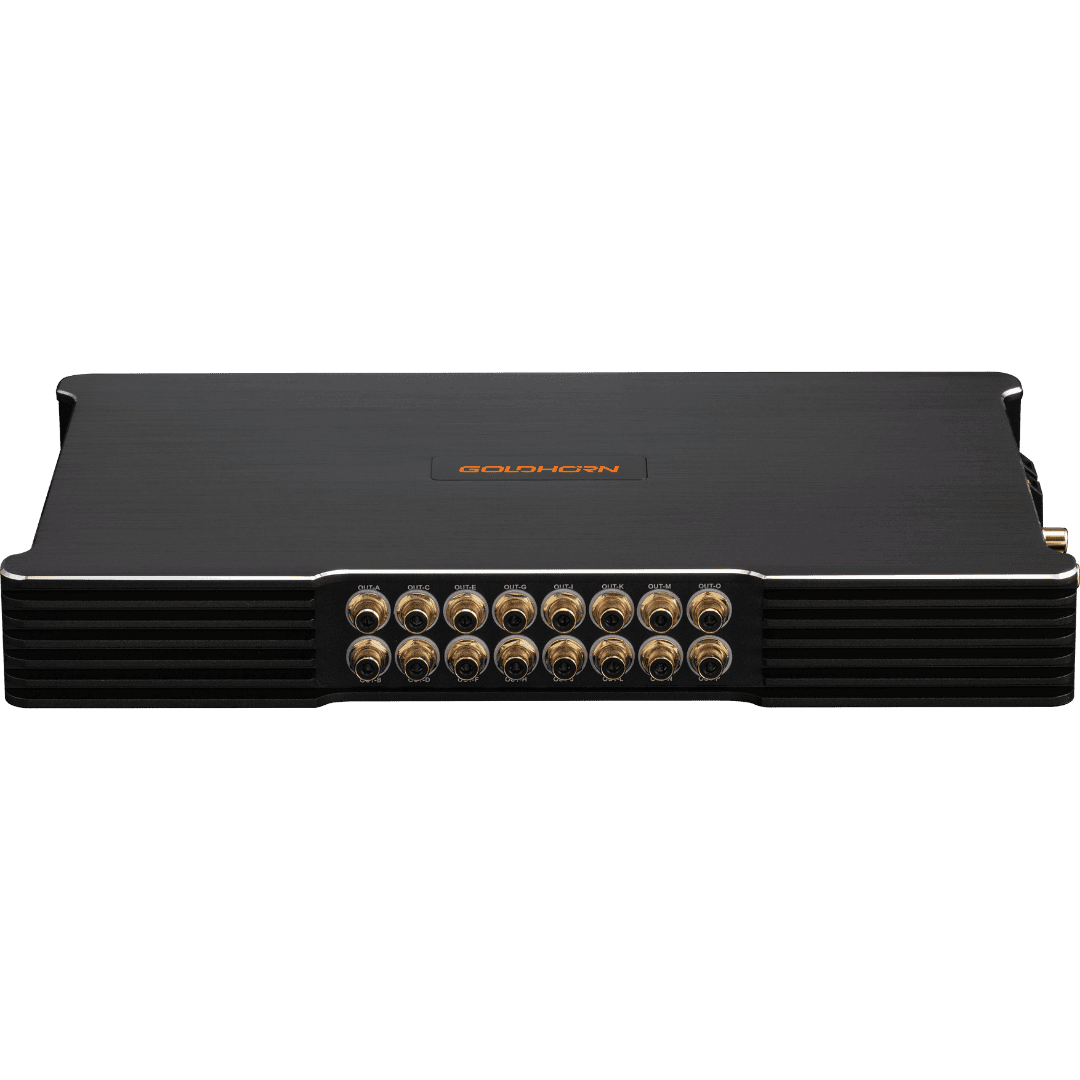

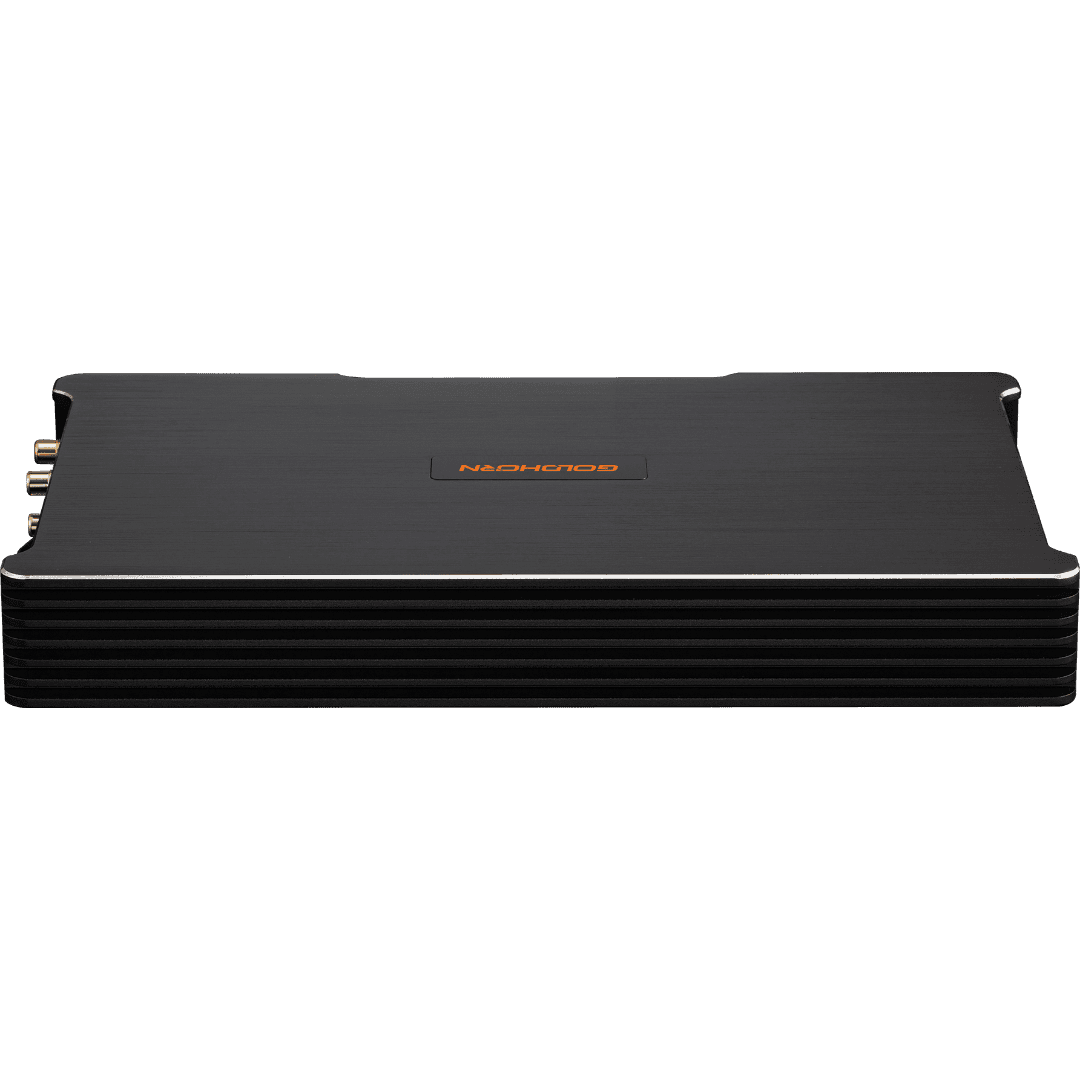

Delivery times per countryThe DSPA 1216 Plus is a high-performance DSP Amplifier designed for vehicles with complex multi-channel systems. It provides 12 channels of amplification and 16 channels of DSP processing, allowing for full active 3-way front stages plus rear and center channels.
Key Features
- High Power Class D Amplification
- 16-Channel DSP Processing
- OEM Integration Ready
- Compact Chassis
Technical Specifications
Product Identification
| SKU | GH-DSPAMP-DSPA-1216-PLUS |
| EAN | 8721515310096 |
Core Processing
| DSP Processor | Analog Devices ADAU1452 |
| DSP Channels | 16 Channels |
Input Stage
| High Level Inputs | 12 Channels |
| RCA Inputs | 2 Channels |
| Digital Inputs | Optical, Coaxial |
Output Stage
| RCA Outputs | 4 Channels (Processed) |
Amplification
| Amplifier Class | Class D |
| Power Output (4╬®) | 12x 80W |
| Power Output (2╬®) | 12x 120W |
| Bridged Power | 6x 200W (4╬®) |
Audio Performance
| S/N Ratio | 105dB |
Connectivity
| Bluetooth | 5.0 Standard |
System & General
| Dimensions | 290mm x 180mm x 55mm |
Manufacturer & Importer Information
Manufacturer:Goldhorn Electronics Co., Ltd (Fujian)
Building 13, Haixi Hi-Tech Park,
Fuzhou, Fujian, China
www.goldhornaudio.com
Building 13, Haixi Hi-Tech Park,
Fuzhou, Fujian, China
www.goldhornaudio.com
Technical Specifications
Product Identification
| SKU | GH-DSPAMP-DSPA-1216-PLUS |
| EAN | 8721515310096 |
Core Processing
| DSP Processor | Analog Devices ADAU1452 |
| DSP Channels | 16 Channels |
Input Stage
| High Level Inputs | 12 Channels |
| RCA Inputs | 2 Channels |
| Digital Inputs | Optical, Coaxial |
Output Stage
| RCA Outputs | 4 Channels (Processed) |
Amplification
| Amplifier Class | Class D |
| Power Output (4╬®) | 12x 80W |
| Power Output (2╬®) | 12x 120W |
| Bridged Power | 6x 200W (4╬®) |
Audio Performance
| S/N Ratio | 105dB |
Connectivity
| Bluetooth | 5.0 Standard |
System & General
| Dimensions | 290mm x 180mm x 55mm |
